OMRON Connect compatible

M7 Intelli IT AFib

HEM-7380T1-EBK

Blood Pressure Monitors

5 years of warranty *

All you need for at home monitoring of your heart's health in one device. With a touch of a button, automatically screen for AFib every time you measure your blood pressure.

Possible AFib detection with every measurement

Intelli wrap cuff (22-42 cm)

OMRON connect

2 users x 100 memories + guest mode

Irregular heartbeat detection

High blood pressure indicator

Clinically validated, also in patients with type II diabetes and pregancy with and without pre-eclampsia

Transform your home blood pressure check into a powerful defence against stroke with M7 intelli IT AFib, powered by the clinically validated Intellisense AFib technology by OMRON.Thanks to the revolutionary Intellisense AFib technology, now routine blood pressure checks automatically screen for Atrial Fibrillation, a heart rhythm disorder that is often undiagnosed but significantly increases stroke risk in people with hypertension.With a touch of a button, automatically screen for AFib every time you measure your blood pressure. Maximize the benefits of regular monitoring, help prevent more serious complications and have a more comprehensive overview of your heart health, reducing the stress of uncertainty.Automatically update your latest results to your smartphone by Bluetooth and have your blood pressure readings at your fingertips through the OMRON connect app or you can just ask Alexa to let you know your latest readings without even picking up your phone.Take the hassle out of cuff placement on your upper arm thanks to OMRON’s unique Intelli Wrap Cuff – giving accurate blood pressure measurements in any position around the upper arm.

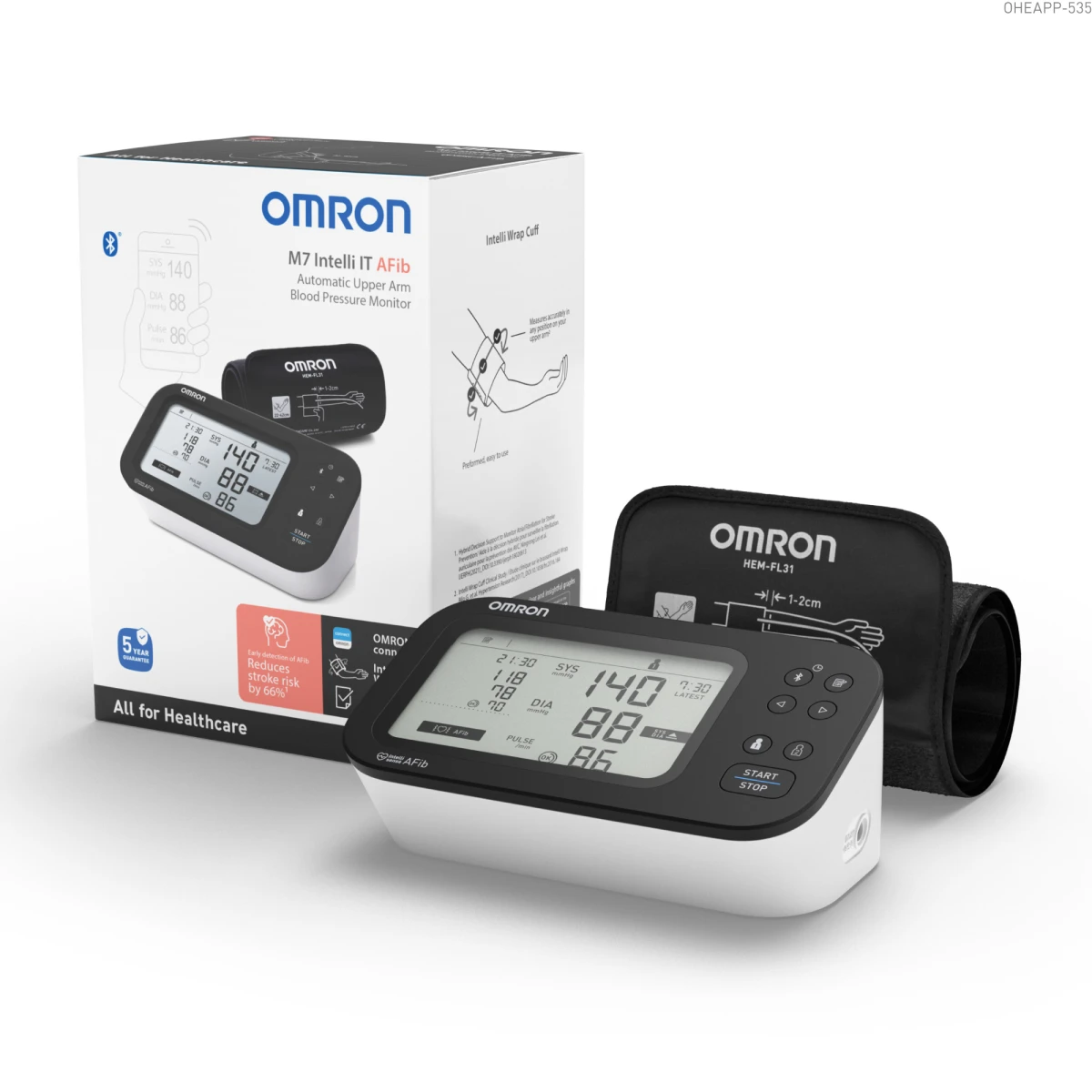

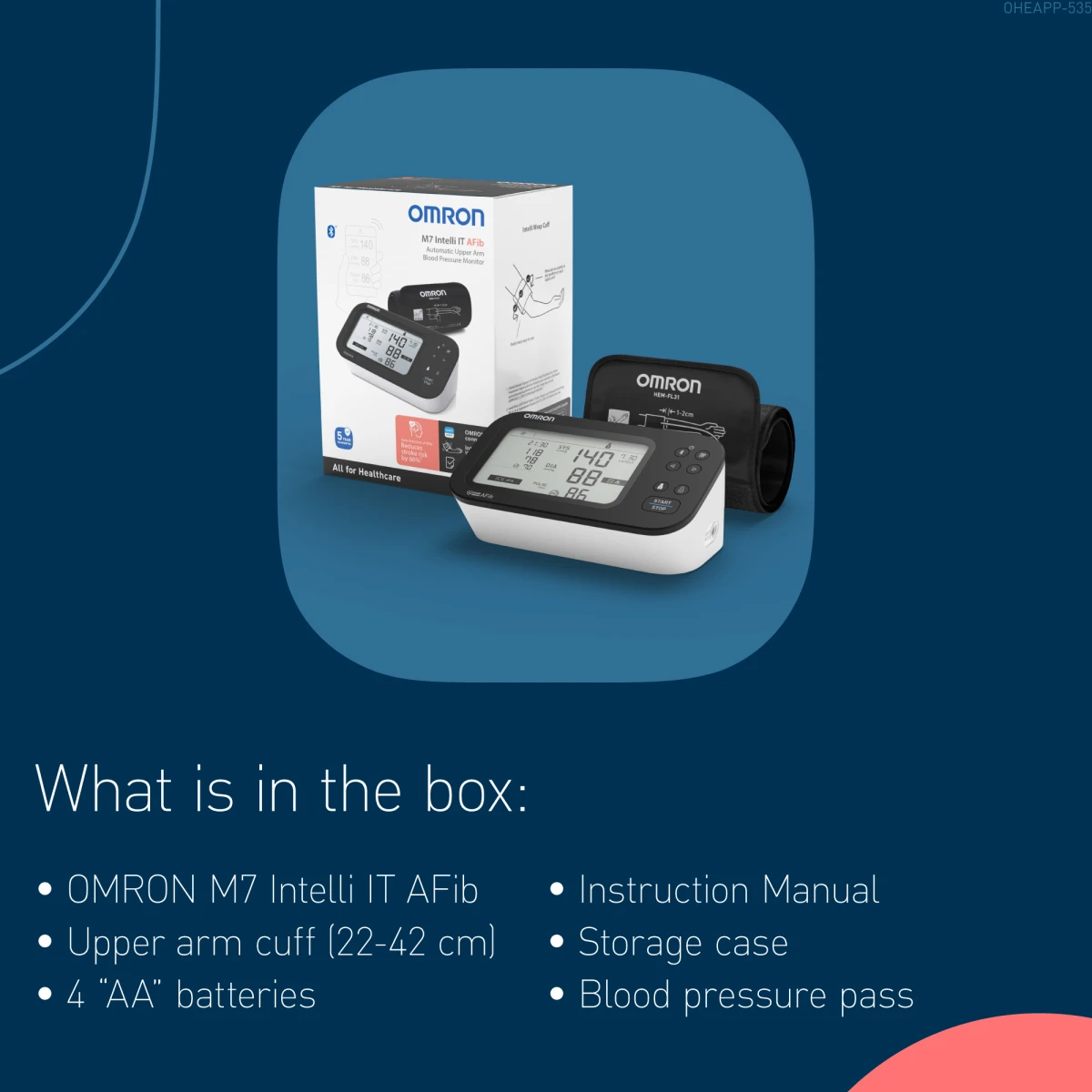

1 x OMRON M7 Intelli IT AFib blood pressure monitor, 22-42 cm Intelli Wrap arm cuff, 4 x AA batteries, instruction manual, storage case, blood pressure pass.

Weight of Device (kg): 0.44

Cuff Type: Intelli Wrap Cuff 22–42 cm

Cuff Wrap Guide: Yes

Memory management: 2 users x 100 readings plus guest mode

Irregular Heartbeat Detection: Yes

Body Movement Detection: Yes

Validation: Clinical Validation, Diabetic Validation, Pregnancy Validation

AFib detection: Yes

Easy High Blood Pressure Indicator: Yes

Advanced Positioning Sensor: Yes

Intellisense: Yes

Storage Case Included: Yes

Averaging Function: Yes

Connected: Yes

Compatible Mobile App: OMRON connect app

Item Dimensions (mm): 191 x 85 x 117

Instruction Manual

Download

The two terms are not the same. Clinically Validated means a product has been evaluated by an independent organisation and tested against as well as met the stringent requirements as set out by numerous international organisations such as the British Hypertension Society (BHS), European Society for Hypertension (ESH), and International Protocol (IP), just to mention a few. A device that is ‘clinically tested’ has not been tested or evaluated against a set of defined criteria it simply means the device has been used by staff in some type of clinic.

When the cuff is assembled correctly, the Velcro hook material will be on the outside of the cuff loop and the metal ring will not touch your skin. If the cuff is open, pass the end of the cuff furthest from the tubing through the metal ring to form a loop. The smooth cloth should be on the inside of the cuff loop.

Remove tight-fitting clothing from your upper arm.
Sit in a chair with your feet flat on the floor.
Put your left arm through the cuff loop. The bottom of the cuff should be about 1 – 2 cm above your elbow (thickness of your index or middle finger). Adjust the cuff around your arm so that the tubing runs down the centre of your arm in line with your middle finger (palm open and facing upwards).
Secure the cuff around your arm using the cloth closure. Pull the cuff so that the top and bottom edges are tightened evenly around your arm.
The cuff should be firmly secured but not too tight – just enough so that it is difficult to slide 2 fingers under the cuff. This space is imperative for an accurate reading. OMRON's digital Blood Pressure Monitors use the Oscillometric method of blood pressure measurement that detects your blood's movement through your brachial artery and converts this movement into a digital reading.
Relax your arm and place your elbow on the table so that the cuff is at the same level as your heart. Turn the palm of your hand upward.
Check there are no kinks in the air tubing. Be careful that you do not rest your elbow on the air tube when taking a blood pressure reading.
Press the ‘O/I START’ or ‘START’ button to begin the blood pressure reading.
For additional information please refer to the Instruction Manual for your device

EVOLV

Learn more

M6 Comfort AFib

Learn more

EVOLV

Learn more

Early detection is key in stroke prevention

How to Use

Clinically validated for accuracy, our revolutionary Intellisense AFib technology turns your routine blood pressure checks at home into a powerful defense against stroke. The Intelli Wrap Cuff ensures accurate results, no matter how it is worn. It is easy to use, providing a sure fit with a pre-shaped design that works in any position around the upper arm.

Intellisense AFib

Intellisense AFib is OMRON’s proprietary technology that calculates blood pressure values and detects AFib using the pulse pressure wave (PPW) from the blood preassure measurement. A PPW is a waveform that represents arterial pressure changes.

Pulse Pressure Wave

Air is fed into a cuff wrapped around the upper arm and, as every heartbeat sends blood through the arteries, the sensor captures the pressure pulses applied to the air in the cuff. There are significant differences in the PPW waveforms of normal and AFib patients. Intellisense AFib captures these differences to detect the possibility of AFib.

AI-powered algorithm

Intellisense AFib technology employs machine learning techniques using a unique AI-powered algorithm developed through the analysis of thousands of ECG readings and pulse pressure wave clinical data points, validated in collaboration with medical professionals, ensuring its precision and reliability with a sensitivity of 95% and specificity of 98%.

Early detection, better outcomes

Spotting AFib signs early from home can prevent more serious complications with timely and effective interventions.

Know when to seek help

Home monitoring delivers a more comprehensive overview of your heart health, reducing the stress of uncertainty.

Dual function

With a touch of a button, automatically screen for AFib every time you measure your blood pressure.

No extra step needed

Eliminate the need for multiple health gadgets enabling a single-step at-home screening.

External References:

Moody GB, Mark RG. The impact of the MIT-BIH Arrhythmia Database. IEEE Eng in Med and Biol 20(3):45-50 (May-June 2001). (PMID: 11446209) Contains information from “MIT-BIH Arrhythmia Database” which is made available under the ODC Attribution License. doi:10.13026/C2F305

Moody GB, Mark RG. A new method for detecting atrial fibrillation using R-R intervals. Computers in Cardiology. 10:227-230 (1983). Contains information from “MIT-BIH Atrial Fibrillation Database” which is made available under the ODC Attribution License. doi:10.13026/C2MW2D

Clifford GD, Liu C, Moody B, Li-wei HL, Silva I, Li Q, Johnson AE, Mark RG. AF classification from a short single lead ECG recording: The PhysioNet/computing in cardiology challenge 2017. In 2017 Computing in Cardiology (CinC) 2017 Sep 24 (pp. 1-4). IEEE. doi:10.22489/CinC.2017.065-469 Contains information from “AF Classification from a Short Single Lead ECG Recording: The PhysioNet/Computing in Cardiology Challenge 2017” which is made available under the ODC Attribution License. https://physionet.org/content/challenge-2017/1.0.0/training/#files-panel https://opendatacommons.org/licenses/by/1-0/

Goldberger, A., Amaral, L., Glass, L., Hausdorff, J., Ivanov, P. C., Mark, R., … & Stanley, H. E. (2000). PhysioBank, PhysioToolkit, and PhysioNet: Components of a new research resource for complex physiologic signals. Circulation [Online]. 101 (23), pp. e215–e220.
